Laser Welding Pitting Observation Experiment Based on High-Speed Camera Technology

Experimental study on laser welding pitting observation based on high-speed camera technology

1. Research background and significance

Laser welding, as a high-precision and high-efficiency connection technology, is widely used in the fields of new energy vehicles, semiconductor packaging, and aerospace component processing. The formation of dynamic pitting in the molten pool during laser welding will affect the strength and sealing of the welded joint. The dynamic stability of the pitting also determines the quality of the weld and the probability of defects such as pores and cracks.

Traditional detection methods such as metallographic sectioning are difficult to capture the pitting formation process and characteristics in real time and intuitively. High-speed camera technology can accurately capture the dynamic behavior and evolution of pitting with microsecond resolution, providing real-time data support for welding process optimization.

Recently, Qianyanlang technical engineers and researchers from a key welding laboratory of a university jointly carried out a laser welding pitting observation experiment based on high-speed camera technology.

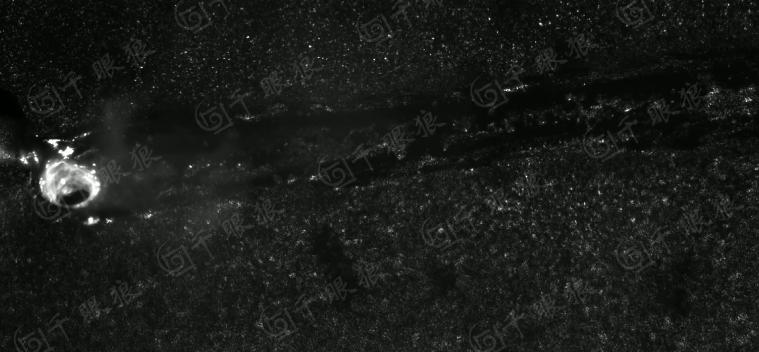

Figure 1 Etching pit

2. Experimental objectives

1) Real-time observation of the formation and development of pitting during laser welding, and acquisition of dynamic image information of pitting.

2) Analyze the changing patterns of characteristic parameters such as pit shape, size, and position under different welding conditions.

3) Explore the causes and influencing factors of pitting, and establish a relationship model between pitting and welding process parameters.

3. Experimental equipment

1) High-speed camera: Revealer M230M, sampling frequency 3000 frames/second, resolution 1920×1080,

Equipped with narrow band filters to suppress plasma interference.

2) Laser welding system: wavelength 1064nm, power 1.5kW, equipped with a six-axis robot to precisely control the welding path.

3) Synchronous controller: time accuracy 1μs, used for triggering synchronization of laser and high-speed camera.

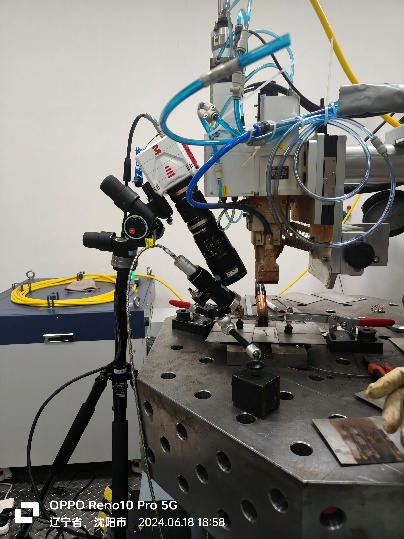

Figure 2

4. Experimental process and data

1) Install the high-speed camera and the laser head coaxially and forwardly, with the viewing angle perpendicular to the welding direction, and use an 808nm laser as the fill light source to fill light from the front.

2) Set the acquisition frame rate of the high-speed camera to 3000fps, the exposure time to 5μs, and adjust the position and angle of the high-speed camera (see Figure 2 for details) to clearly capture the welding field area of 3×2cm.

3) Set the laser welding process parameters, use 1.5kW continuous wave mode, welding speed 50~80mm/s,

4) Start the laser welding equipment and the high-speed camera to shoot synchronously in real time, record the whole welding process , observe the dynamic characteristics of the pitting, the stable pitting is "spindle-shaped", the depth fluctuation range is ±0.1mm, the frequency is about 200Hz, and there is splashing particles.

这里有个激光焊接蚀孔.mp4视屏待传

5) The image analysis software supporting the high-speed camera can be used to process and analyze the sequence images. The dynamic characteristic parameters such as the appearance time, duration, growth rate, shape change of the pits can be extracted, and the correlation analysis can be carried out with the welding process parameters.

5. Experimental conclusions

This experimental study provides a high-precision, high-speed, dynamic observation method for pit formation and development for laser welding process development, which is suitable for application scenarios such as new energy vehicle battery sealing welding, semiconductor packaging, and aerospace component connection. In the future, high-speed camera sequence image data combined with AI numerical simulation methods can more accurately predict the pitting phenomenon in the laser welding process and realize real-time closed-loop control of welding quality.

Attached is the introduction of Qianyanlang welding current and voltage module

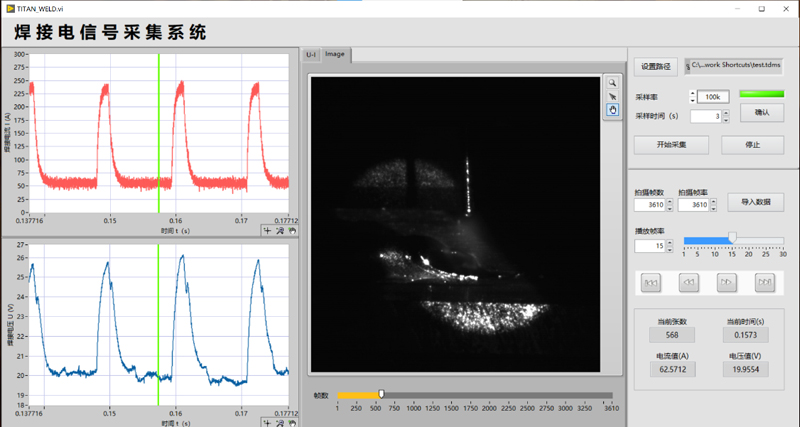

Qianyanlang welding current and voltage analysis module records the arc voltage and welding current during arc welding, synchronously triggers the high-speed camera, realizes the digital recording of welding electrical signals and online image monitoring, and can be applied to welding process research, welding material evaluation and improvement, welding power supply characteristic detection and adjustment, welding quality analysis and other fields.

Thousand Eye Wolf welding current and voltage module parameter table↓↓↓
