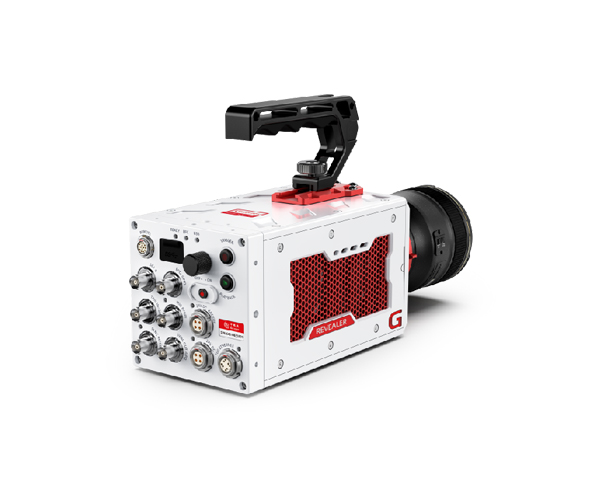

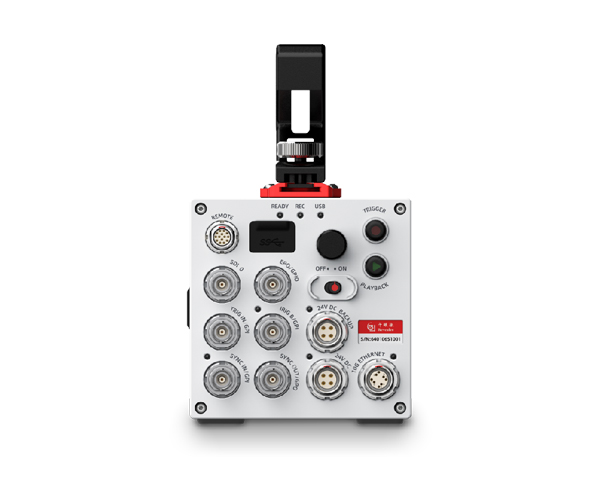

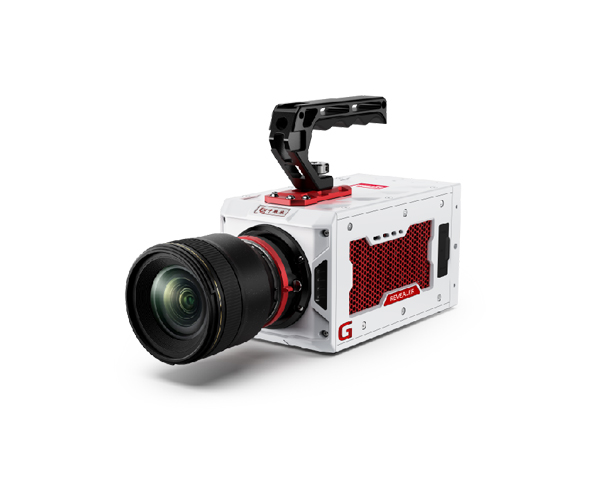

The Revealer 4K Resolution High Speed Camera G820_Pro is engineered for large field of view (FOV) optical tracking metrology, strain field measurement, film/television production, and automotive crash testing. Featuring an APS-C-sized global shutter CMOS sensor and proprietary light-guiding optics, this high speed camera achieves 4K imaging at multi-thousand fps frame rates.
12 Bit depth
2000fps at 4K resolution
192GB large memory for long time record
10TB Non-volatile SSD
10Gb Ethernet for fast download
| SKU | G520M/C_Pro | G536M/C_Pro | G820M/C_Pro | G2110M/C_Pro |
| Sensor | CMOS | CMOS | CMOS | CMOS |
| Resolution | 2560×2016 | 2560×2016 | 4096×2048 | 5120×4096 |
| Frame | 2000fps | 3600fps | 2000fps | 1000fps |
| Max. frame | 31700fps | 60000fps | 49100fps | 49100fps |
| Min. exposure time | 1μs | 1μs | 1μs | 1μs |
| Pixel Size | 4.5 μm x 4.5 μm | 4.5 μm x 4.5 μm | 4.5 μm x 4.5 μm | 4.5 μm x 4.5 μm |
| PIV | 300ns | 300ns | 300ns | 300ns |
| ADC | 8/10(M Only)/12bit(M Only) | 8/10(M Only)/12bit(M Only) | 8/10/12bit | 8/10/12bit |
| AE | Available | Available | Available | Available |
| Internal RAM | 192GB | 192GB | 192GB | 192GB |
| Lens | EF standard, F optional, Coptional | EF standard, F optional, C optional | EF standard, F optional, Coptional | FE standard, F optional, C optional |
| Size W×H×D mm | ≤110×110×205mm | ≤110×110×205mm | ≤110×110×205mm | ≤110×110×205mm |
| Weightg | ≤3800 | ≤3800 | ≤3800 | ≤3800 |
| Mounting hole | Top Bottom Left and right sides with 1/4 threaded mounting holes | Top Bottom Left and right sides with 1/4 threaded mounting holes | Top Bottom Left and right sides with 1/4 threaded mounting holes | Top Bottom Left and right sides with 1/4 threaded mounting holes |
| Cooling | Fans | Fans | Fans | Fans |
| Operating temperature | -10~50°C | -10~50°C | -10~50°C | -10~50°C |
| Operating temperature optional | -35 ~ 60℃ | -35 ~ 60℃ | -35 ~ 60℃ | -35 ~ 60℃ |
| Power Consumption | 80W | 80W | 80W | 80W |
| Operating humidity | 0~95% | 0~95% | 0~95% | 0~95% |
| Protection level | IP64 | IP64 | IP64 | IP64 |
| Shock | 30Grms @11mSec | 30Grms @11mSec | 30Grms @11mSec | 30Grms @11mSec |
| Vibration | 3 axes 60 pulses | 3 axes 60 pulses | 3 axes 60 pulses | 3 axes 60 pulses |
