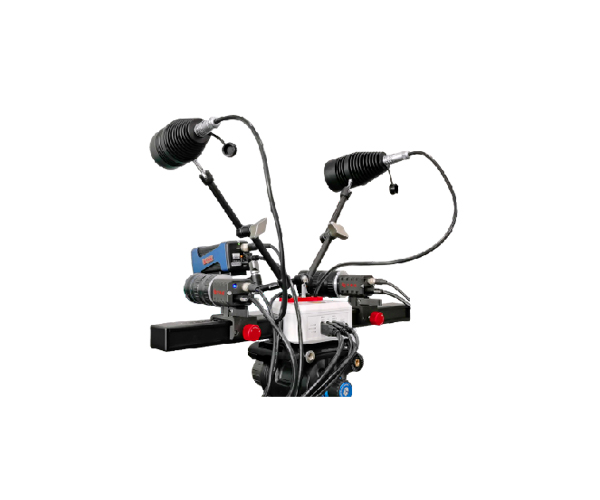

The Revealer Digital Image Correlation(DIC) High-Temperature Strain Measurement System is engineered for mechanical property measurement of special materials under high-temperature conditions in aerospace and marine engineering. It integrates two high-resolution cameras, an infrared thermal imager, a synchronization trigger, RDIC measurement software, calibration plates, and a graphics workstation.
High-temperature measurement up to 1500 degrees
Sub-pixel displacement recognition algorithm
Full-field displacement and strain distribution measurement
Intelligent voice interaction sampling
Easy to use software
| SKU | RDIC-IR |
| No. of cameras | High resolution camerasx2, Infrared camerasx1 |
| Resolution | 2448x2048 |
| Resolution @frame | 4096x3000 @29fps |
| IR Resolution @frame frequency | 640x512 @25Hz |
| Displacement accuracy | 0.01pixel |
| Strain accuracy | ≤50με |
| Strain Measurement Range | 0.005%~2000% |
| Temperature measurement range | -20°C ~+550°C, 1500° C optional |
| NETD | ≤50mk |
