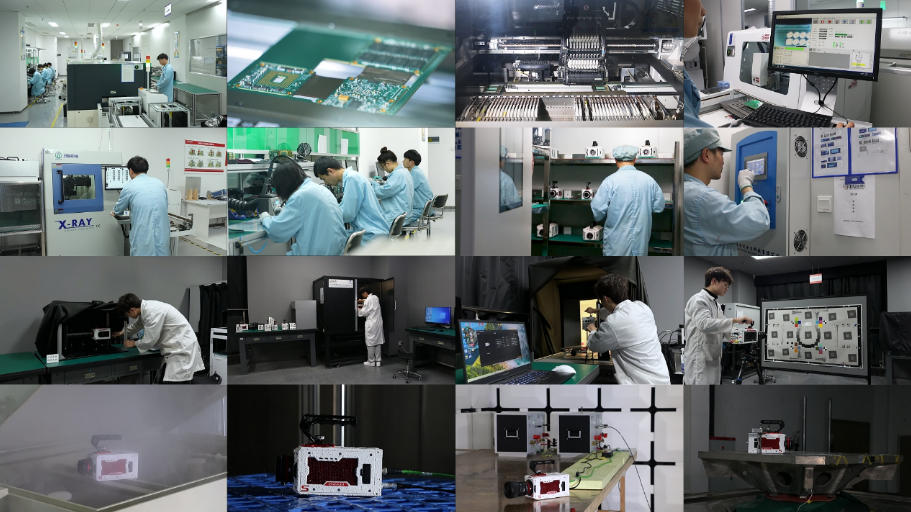

In the field of high-speed imaging, reliability has never been a slogan—it is the result of long-term real-world application. Complex operating environments, high-frequency triggered acquisition, and continuous stable operation without dropped frames all impose stringent requirements on component selection, structural design, optical-mechanical-electrical-software integration, and production quality control systems of a High Speed Camera. Over more than a decade of sustained operation, the products themselves stand as proof of the reliability, durability, and engineering quality of Revealer High Speed Cameras.

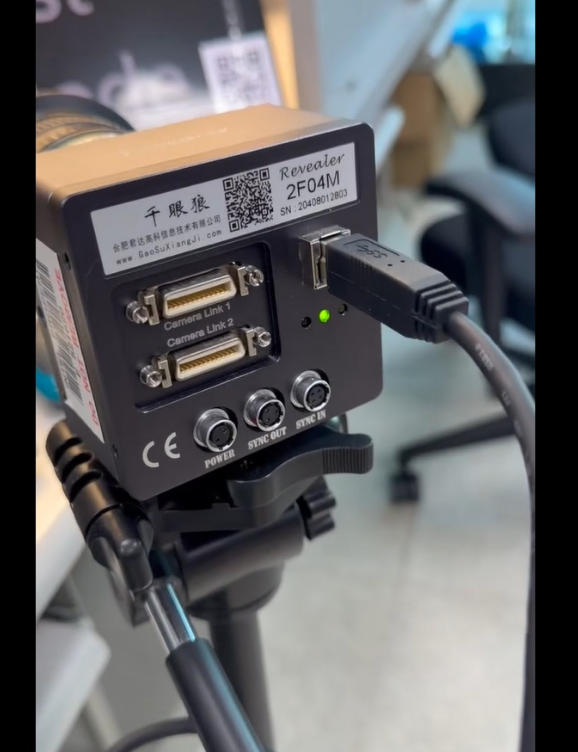

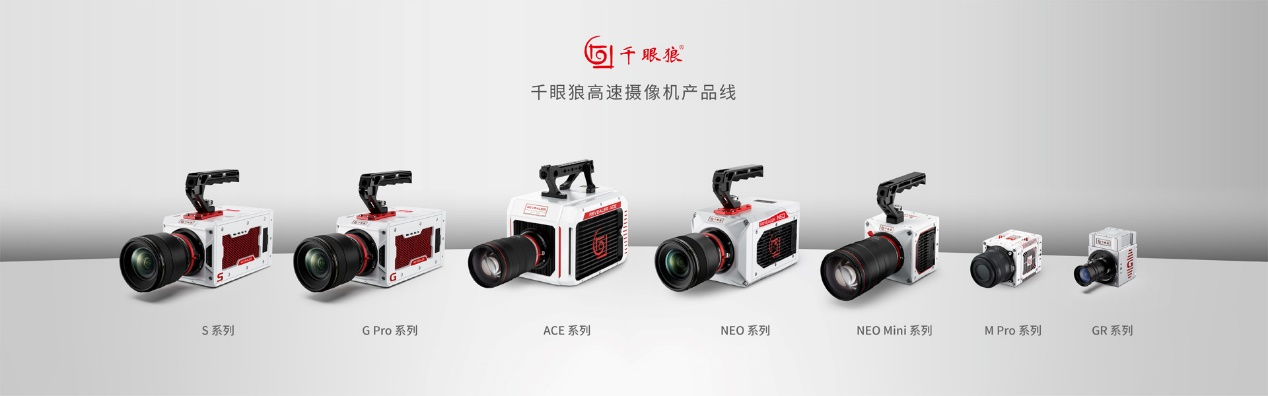

The 2F04M represents the quality DNA of Revealer’s early-generation products. Today, the fully upgraded third-generation Revealer High Speed Camera product system—including the ACE Series, NEO Series, and G Mini Series—forms a comprehensive product matrix covering diverse scientific research and industrial application needs.
Revealer ACE Series High Speed Camera
The ACE Series High Speed Camera is designed for observing microsecond-level transient processes. It utilizes a high-sensitivity backside-illuminated (BSI) CMOS sensor and can achieve up to 65,000 frames per second at a resolution of 1280×1024, balancing temporal resolution with imaging quality.
With high quantum efficiency, large pixel size, and low readout noise, it delivers stable and clear image data even under low-light and wide-spectrum conditions. The system integrates high-capacity high-speed storage, precision triggering, and intelligent acquisition control, supporting continuous and efficient data recording and export. It is suitable for scientific and industrial high-speed imaging scenarios such as deflagration, impact, discharge, fluid dynamics, and material testing.
Revealer NEO Series High Speed Camera
The NEO Series High Speed Camera adopts a new-generation backside-illuminated (BSI) sensor with high sensitivity and large-pixel design, enabling high-speed imaging at illumination levels as low as 10 lux.
It supports up to 25,000 fps at full resolution and million-level frame rates in ROI mode, making it suitable for capturing microsecond-level transient events. Equipped with a high-speed storage system, it supports simultaneous recording and data export. Covering a spectral range from ultraviolet to near-infrared, it meets the needs of multi-disciplinary scientific research and industrial inspection applications such as combustion diagnostics, fluid measurement, and explosion analysis.
Revealer G Mini Series High Speed Camera
The G Mini Series High Speed Camera features an APS-C format global shutter CMOS sensor with high resolution and large sensor size. It supports up to 21 megapixels and 4K image acquisition at thousand-frame-level speeds.
Frame rates range from 1,000 fps up to 60,000 fps (ROI mode), making it suitable for high-precision vision applications such as large-field optical tracking and strain field measurement. The compact body design supports 10 Gigabit Ethernet transmission and multiple interface expansions. With an IP64 protection rating and wide-temperature operating capability, it is suitable for various scenarios including film production, industrial inspection, and scientific measurement.
Product performance, image quality, sensitivity, data transmission, photosensitivity, and dynamic range have continuously improved over generations, yet the core quality DNA of “stability and reliability” has remained unchanged.
This is not merely an advertising slogan, but the development philosophy that Revealer has always upheld: make equipment simpler, and allow research to be more focused.
Through continuous optimization of intelligent triggering, automatic calibration, high-speed data transmission, and system stability, Revealer consistently reduces the interference of complex operations on scientific work. This frees researchers from cumbersome equipment management, allowing them to devote valuable time and energy to scientific questions themselves, thereby improving research efficiency.
From the 2F04M, which has remained in service for over a decade, to today’s fully evolved third-generation High Speed Cameras such as ACE, NEO, and G Mini, what has changed at Revealer is technology and performance. What has remained unchanged is the original aspiration of being a “research partner.”
Revealer is not merely an experimental instrument, but a companion working alongside researchers.
We thank all long-term customers for their trust. Revealer will continue to strive and innovate, and through continuously refined and evolving products, fulfill the commitment to “make scientific research more efficient and simpler.”
The devices still operating on the front lines have already provided the real answer to the question: Which High Speed Camera is truly the best?
