The M220M/C records at 2,000 fps with 1920 × 1080 full-frame resolution. This provides Full HD image detail with a 0.5 ms interval between frames for motion tracking, inspection and analysis.

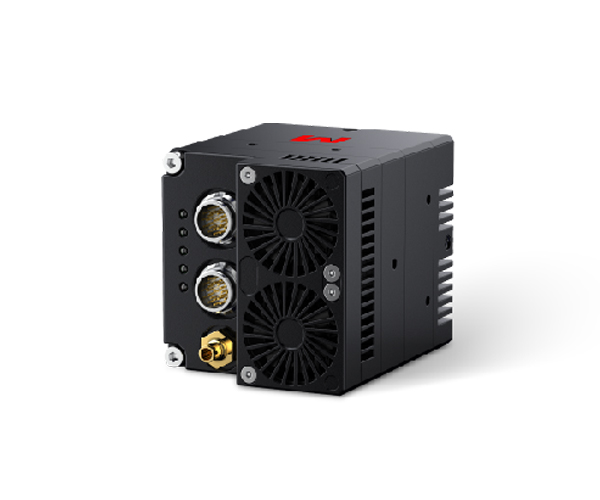

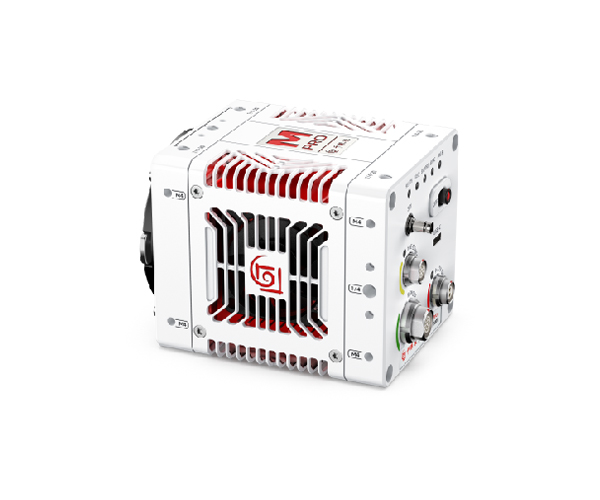

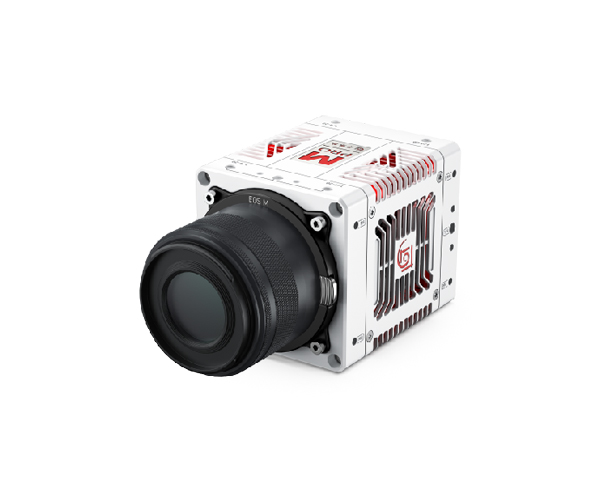

The Revealer M220M/C 2,000fps Compact High Speed Camera is engineered for applications where space is limited and conditions are demanding. Through a radical re-engineering of internal systems, this miniature camera achieves a remarkably small form factor (75x75x90mm) without compromising performance, featuring 1080P resolution, 2TB onboard storage, and robust vibration and shock resistance. It is the ideal solution for airborne pod integration, automotive crash testing, underwater research, and any mobile or confined deployment.
Rugged body
High speed camera 2000 fps 1080P capture frame rate
Offline use support
2TB Non-volatile SSD
Vibration-resistant and shock-resistant
The 75 × 75 × 90 mm housing and approximately 820 g camera weight allow this 2000fps camera to be installed in confined test areas, vehicle interiors, airborne platforms, robotic equipment and multi-camera arrangements where available space and payload are limited.
The M220M/C records at 2000 fps while maintaining 1920 × 1080 full-frame resolution. This provides a 0.5 ms interval between frames while preserving Full HD spatial detail for motion tracking, mechanical analysis and visual inspection. For users comparing a Full HD 2000 fps camera, the M220M/C offers a practical balance between temporal resolution and image detail.
SSD options from 64GB to 2TB allow high-speed image sequences to be recorded directly inside the camera. This onboard storage supports mobile and offline test workflows in which maintaining a continuously connected computer may not be practical.
The metal housing, IP64 protection and shock- and vibration-resistant design support demanding mobile and industrial tests. This compact camera 2000 fps solution is suitable for selected vehicle-mounted and airborne applications, with optional extended-temperature configurations available.

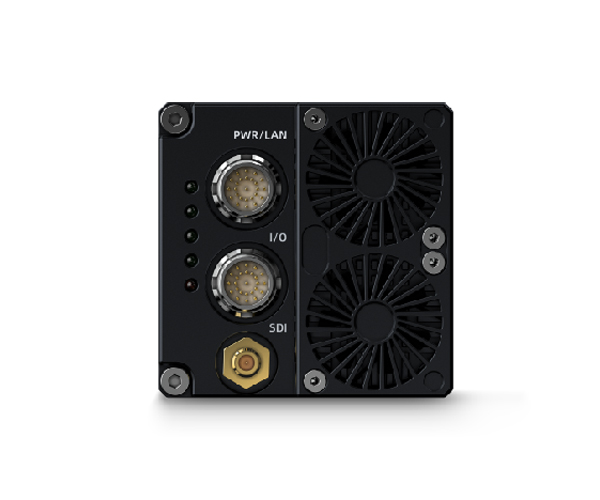

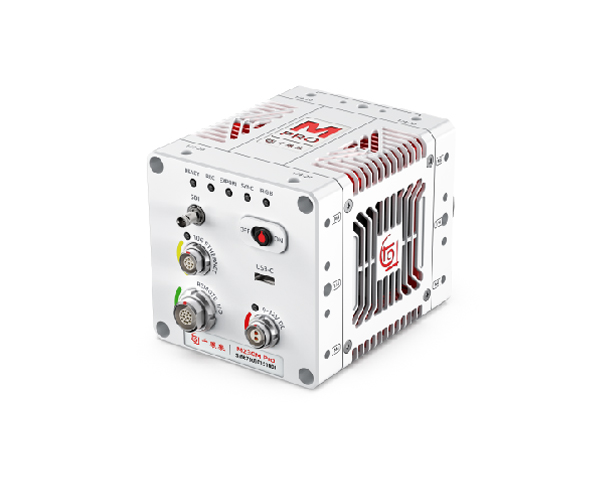

Gb Ethernet, 3G-SDI/HDMI output, TTL synchronization, timing input and optional lens mounts allow the 2000 fps camera to integrate with external sensors, test benches, displays, lighting equipment and multi-camera systems.
The M220M/C records at 2,000 fps with 1920 × 1080 full-frame resolution, providing a 0.5 ms interval between frames. This balance supports motion tracking, crash testing, mechanical analysis and other applications requiring both speed and Full HD image detail.
Whether 2,000 fps is sufficient depends on object speed, field of view and the movement between frames. Learn more about choosing a compact high speed camera for mobile and airborne testing.
Review the detailed specifications of our compact high-speed camera series, all designed to deliver 2,000fps performance in a small, rugged package built to withstand extreme conditions.
| SKU | M220M/C | M210M/C |
| Sensor | CMOS | CMOS |
| Resolution | 1920×1080 | 1920×1080 |
| Frame | 2000fps | 1000fps |
| Shutter | Global shutter | Global shutter |
| Min. exposure time | 100ns | 100ns |
| Pixel Size | 10 μm x 10 μm | 10 μm x 10 μm |
| ADC | 10bit | 10bit |
| AE | Available | Available |
| EDR | Available | Available |
| Data interface | Gb Ethernet | Gb Ethernet |
| Video interface | 3G-SDI/HDMI | 3G-SDI/HDMI |
| Sync Input Interface | 3.3/5V TTL | 3.3/5V TTL |
| Sync Output Interface | 5V TTL | 5V TTL |
| Timing | DC IRIG_B in/GPI | DC IRIG_B in/GPI |
| Control interface | Reserve RS422 | Reserve RS422 |
| SSD | 64GB/256GB/512GB/1TB/2TB | 64GB/256GB/512GB/1TB/2TB |
| Lens | EF standard, F optional, C optional | EF standard, F optional, C optional |
| Size W×H×D | 75×75×90mm | 75×75×90mm |
| Weight | 820g | 820g |
| Mounting hole | Top Bottom with 1/4 threaded mounting holes | Top Bottom with 1/4 threaded mounting holes |
| Cooling | Fans | Fans |
| Operating temperature | -20~50°C，-40~70°C optional | -20~50°C，-40~70°C optional |
| Operating humidity | 0~95% | 0~95% |
| Power Consumption | 40W | 40W |
| Protection level | IP64 | IP64 |
| Shock | 30G Max 200G backward peak wave @7mSec 3 axe | 30G Max 200G backward peak wave @7mSec 3 axe |
| Vibration | 7.5Grms 15min/3 axes | 7.5Grms 15min/3 axes |
| EMC | Available | Available |
Specifications will be updated. For details, please contact with us.
The M220M/C records at 2,000 fps with 1920 × 1080 full-frame resolution. This provides Full HD image detail with a 0.5 ms interval between frames for motion tracking, inspection and analysis.
It is often sufficient for component deployment, vehicle testing, robotics, drop testing and mechanical motion. Faster fracture, combustion or shock-wave events may require a higher frame rate.
Recording time depends on frame rate, resolution, bit depth and SSD capacity. With 64GB to 2TB onboard storage, the camera can support offline recording without a continuously connected computer.
Price depends on SSD capacity, color or monochrome configuration, lens, lighting, triggering, environmental requirements and software. Providing your application and installation details helps Revealer recommend a suitable high speed camera configuration.
