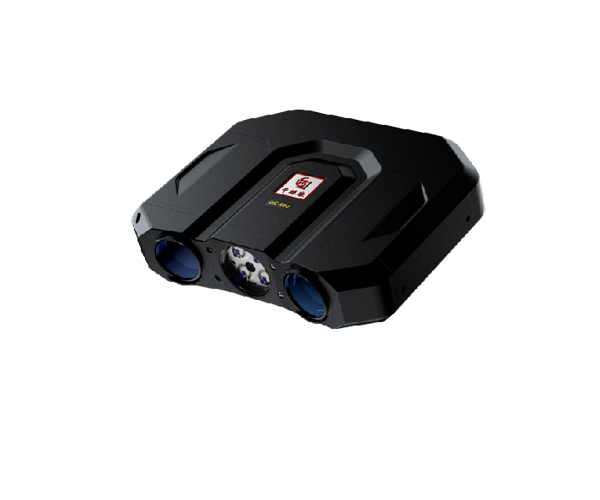

The Revealer Educational Digital Image Correlation(DIC) is a portable, all-in-one strain measurement platform designed for undergraduate teaching in mechanics, materials science, civil engineering, water resources, and geology programs at universities.
Portable and integrated
Visualization of teaching outcomes in mechanics
Comprehensive teaching support materials
| SKU | RVM-EDU |
| Resolution @frame | 4096x3000 @30.5fps |
| Measurement range | 200x150mm 100x75mm |
| Displacement accuracy | 5μm In-plane 10μm off-plane |
| Strain accuracy | ≤5OμE |
| Strain Measurement Range | 0.005%~2000% |
| Save images in real time | ● |
| Tester communication | ● |
Specifications will be updated. For details, please contact with us.
