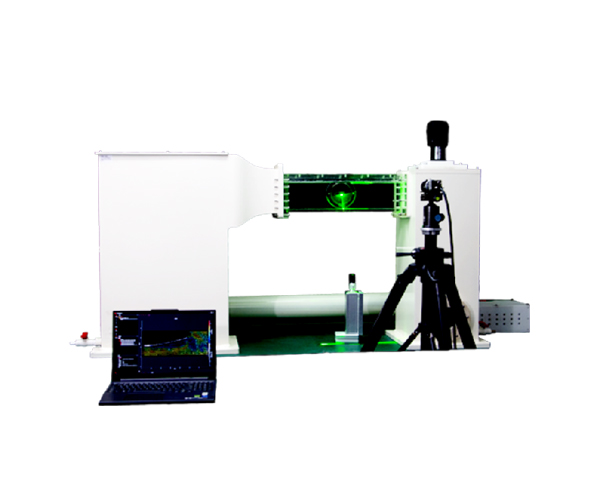

The Revealer Educational Particle Image Velocimetry(PIV) System is designed in accordance with undergraduate teaching experiment curricula and based on the principle of PIV. As a one-stop solution, it provides teaching equipment for flow field visualization and measurement, including a recirculating water channel with standard airfoil and cylindrical bluff body obstacles, a CMOS camera, a continuous laser, and RFlow measurement software.
Equipped with Classic Cylinder Flow Experiment and Aquatic Biomimetic Flapping Wing Experiment
Visualization of teaching outcomes in mechanics
Comprehensive teaching support materials
| SKU | Rflow EDU |
| Measurement Object | Vorticity, Turbulence, Boundary Layer |
| Measurement Velocity | 0~0.6m/s |
| Resolution @frame | 640×480 @800fps |
| Image Bit Depth | 10Bit |
| Data interface | USB3.0 |
| Laser Wavelength | 532NM |
| Laser Type | Continuous Laser |
| Laser Power | 10W |
| Software License | Rflow 2D2C |
| Statistics | Average Velocity, Turbulence Intensity, Reynolds Stress |
Specifications will be updated. For details, please contact with us.
