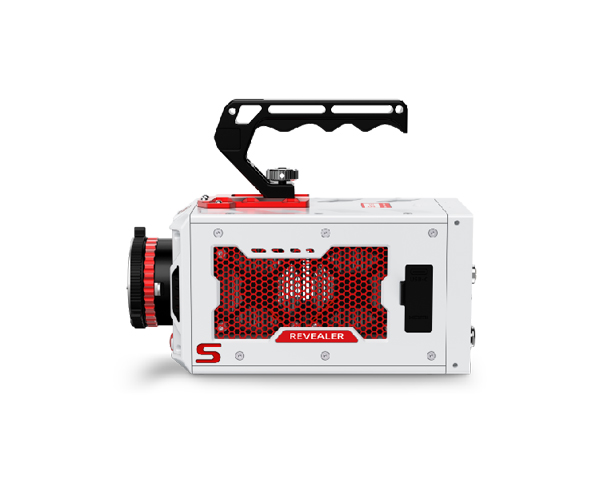

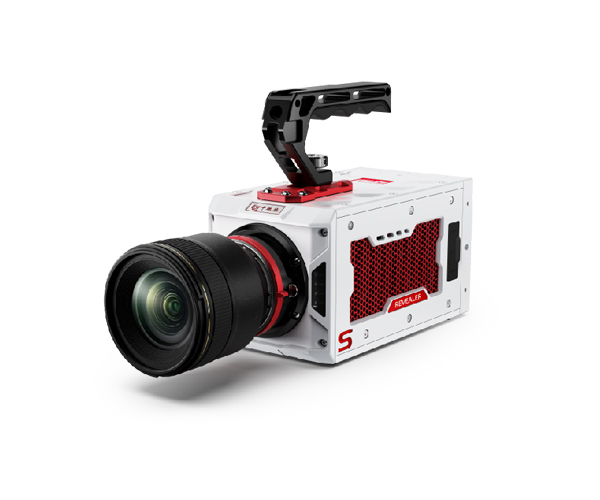

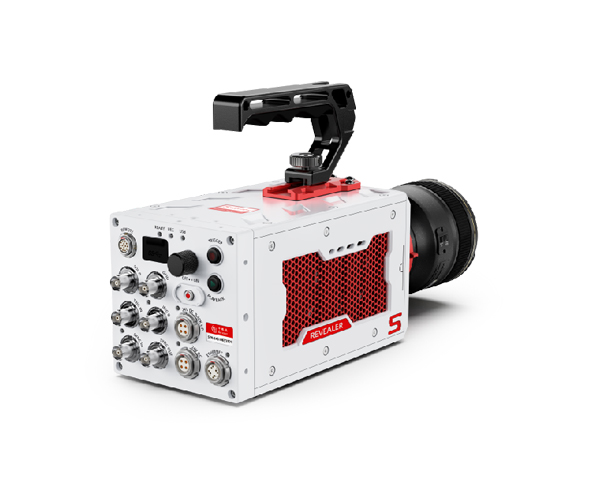

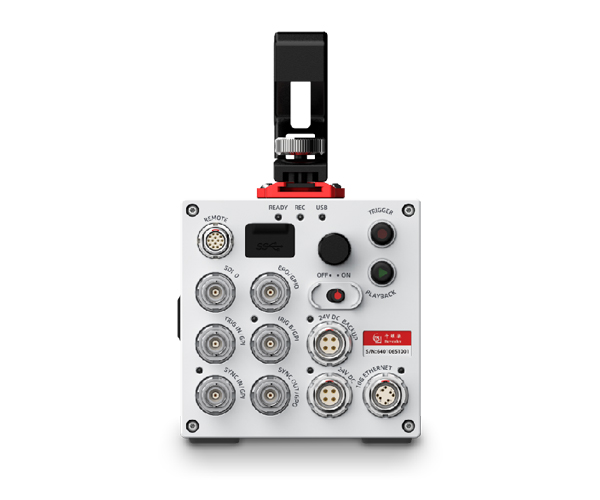

S1307M/C: High-Performance 7,000fps High Speed Camera
The Revealer 7,000fps High Speed Camera S1307M/C is engineered for cutting-edge scientific research, aerospace applications and high-speed industrial environments. Equipped with a high-bandwidth CMOS sensor, high-performance processor, and high-bandwidth real-time storage circuitry, it enables parallel integration of data arrangement, real-time acquisition, storage, and processing.
Looking for a reliable imaging solution for ultra-fast phenomena? The Revealer S1307M/C 7,000fps High Speed Camera delivers unparalleled temporal resolution at 1280×1024 full resolution. Engineered for aerospace, ballistics, and high-speed industrial R&D, this camera ensures every microsecond is captured with 10-bit precision.
7,000fps Full-Frame High-Speed Capture
The S1307M/C model delivers a high-speed frame rate of 7,000 fps at full 1280×1024 resolution. This ensures that you can capture ultra-fast motion without any loss of detail or field of view, making it an essential tool for precise quantitative analysis in scientific research.
Superior 10-Bit Image Depth & Dynamic Range
Featuring 10-bit CMOS sensor technology, this camera provides a higher dynamic range compared to standard 8-bit cameras. This is crucial for capturing intricate details in challenging lighting environments, such as the high-contrast scenes found in combustion research, plasma physics, and shockwave studies.
Massive Data Management with 192GB RAM & 10TB SSD
To support long-duration high-speed recording, the camera is equipped with up to 192GB of internal high-speed RAM. For data safety and mobility, the integrated 10TB non-volatile SSD allows for massive data storage without the need for an immediate PC connection, ensuring reliability in industrial field testing.
High-Speed 10Gb Ethernet Data Transfer
Minimize downtime between experiments with the built-in 10Gb Ethernet interface. This high-bandwidth connection allows for rapid data offloading from the camera's internal storage to your workstation, significantly improving workflow efficiency in high-pressure testing environments.
Versatile Triggering & Synchronization for PIV
Designed for complex experimental setups, the camera supports 3.3/5V TTL pulse triggers and features a minimum inter-frame time of 300 ns (PIV mode). This level of precision is ideal for Particle Image Velocimetry (PIV) and other synchronized multi-camera applications in aerospace and fluid dynamics.
Rugged Design for Industrial & Defense Environments
Built to withstand harsh conditions, the Revealer S1307M/C is IP64 rated and tested to endure 30G shock and high-frequency vibrations. Its wide operating temperature range (up to -35°C to 60°C optional) makes it reliable for ballistics range testing and outdoor industrial monitoring.
| SKU | S1315M/C | S1310M/C | S1307M/C | S1305M/C |
| Sensor | CMOS | CMOS | CMOS | CMOS |
| Resolution | 1280×1024 | 1280×1024 | 1280×1024 | 1280×1024 |
| Frame | 15 000 fps | 10 000 fps | 7 000fps | 5 000fps |
| Shutter | Global shutter | Global shutter | Global shutter | Global shutter |
| Min. exposure time | 100 ns | 100 ns | 100 ns | 100 ns |
| Pixel Size | 14.6 μm x 14.6 μm | 14.6 μm x 14.6 μm | 14.6 μm x 14.6 μm | 14.6 μm x 14.6 μm |
| PIV | 300 ns | 300 ns | 300 ns | 300 ns |
| ADC | 10 bit | 10 bit | 10 bit | 10 bit |
| AE | Available | Available | Available | Available |
| EDR | Available | Available | Available | Available |
| Data interface | 10 Gb/Gb Ethernet | 10 Gb/Gb Ethernet | 10 Gb/Gb Ethernet | 10 Gb/Gb Ethernet |
| Video interface | SDI | SDI | SDI | SDI |
| Sync input interface | 3.3/5V TTL | 3.3/5V TTL | 3.3/5V TTL | 3.3/5V TTL |
| Sync output interface | 5V TTL | 5V TTL | 5V TTL | 5V TTL |
| Timing | DC IRIG_B in | DC IRIG_B in | DC IRIG_B in | DC IRIG_B in |
| Control interface | Reserve RS422 | Reserve RS422 | Reserve RS422 | Reserve RS422 |
| Trigger input | Pulse trigger signal | Pulse trigger signal | Pulse trigger signal | Pulse trigger signal |
| Lens mount | EF, F ,C | EF, F, C | EF, F, C | EF, F, C |
| Internal RAM | 96/192 GB | 96/192 GB | 96/192 GB | 96/192 GB |
| Size W×H×D mm | ≤ 110×110×205 | ≤ 110×110×205 | ≤ 110×110×205 | ≤ 110×110×205 |
| Weight g | ≤ 3800 | ≤ 3800 | ≤ 3800 | ≤ 3800 |
| Operating temperature | -10 ~ 50°C | -10 ~ 50°C | -10 ~ 50°C | -10 ~ 50°C |
| Operating temperature optional | -35 ~ 60℃ | -35 ~ 60℃ | -35 ~ 60℃ | -35 ~ 60℃ |
| Power Consumption | 80 W | 80 W | 80 W | 80 W |
| Operating humidity | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% | 0 ~ 95% |
| Protection level | IP64 | IP64 | IP64 | IP64 |
| Shock | 30Grms @11mSec, 3 axes 60 pulses | 30Grms @11mSec, 3 axes 60 pulses | 30Grms @11mSec, 3 axes 60 pulses | 30Grms @11mSec, 3 axes 60 pulses |
| Vibration | Resistant to transportation vibration | Resistant to transportation vibration | Resistant to transportation vibration | Resistant to transportation vibration |
| EMC | Available | Available | Available | Available |
Specifications will be updated. For details, please contact with us.
Yes. The Revealer S1307M/C is designed to capture 7,000 fps at a full-frame resolution of 1280 x 1024 pixels. Unlike many cameras that require reducing the resolution to increase speed, the S1307M/C provides uncompromised image quality for high-speed scientific analysis.
A 7,000fps frame rate is ideal for analyzing phenomena occurring in the microsecond range. Key applications include ballistics testing, combustion analysis, hypersonic flow research, and Particle Image Velocimetry (PIV). Its high temporal resolution allows researchers to observe crack propagation, fluid turbulence, and high-velocity impacts in extreme detail.
The camera is equipped with up to 192GB of high-speed internal RAM and an integrated 10TB non-volatile SSD. For rapid data offloading, it features a 10Gb Ethernet interface, which significantly reduces the time required to download high-resolution RAW footage to your workstation or server.
Absolutely. The S1307M/C supports PIV mode with a minimum inter-frame time of just 300 ns. This, combined with its high quantum efficiency CMOS sensor, makes it a powerful tool for experimental fluid mechanics and laser-based flow diagnostics.
Yes. The S1307M/C features a rugged design with an IP64 protection rating, ensuring resistance to dust and water splashes. It is also tested to withstand 30G shock (11ms) and intense vibrations, making it reliable for defense range testing and industrial manufacturing line monitoring.
