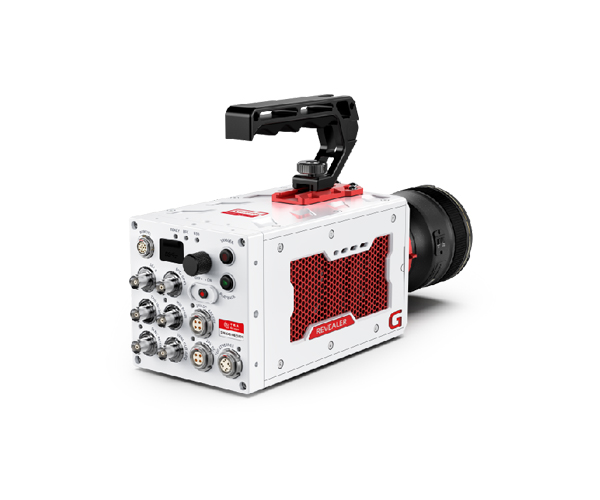

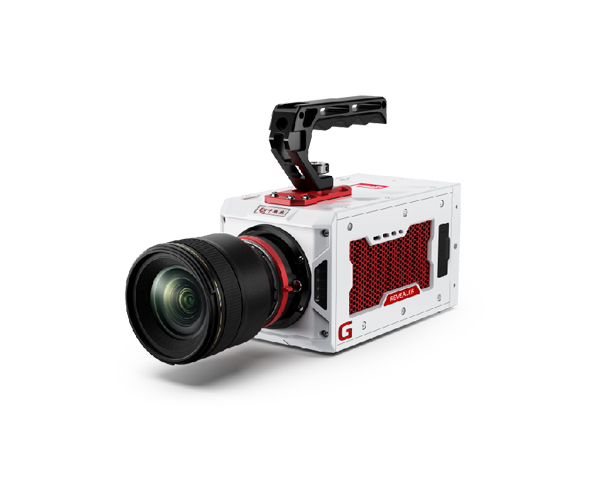

The Revealer 21-Megapixel High Speed Camera G2110M/C_Pro is engineered for large field of view (FOV) optical tracking metrology, strain field measurement, film/television production, and automotive crash testing. Featuring an APS-C-sized global shutter CMOS sensor and proprietary light-guiding optics, this system delivers ultra-high-resolution image acquisition typical of a 21 megapixel camera.
What makes the Revealer G2110M/C_Pro unique? The Revealer G2110M/C_Pro is a professional 21-megapixel high speed camera capable of capturing 1000fps at full 5120×4096 resolution. It is specifically designed for high-precision tasks like PIV (Particle Image Velocimetry), strain field measurement, and automotive crash testing where both ultra-high resolution and rapid frame rates are critical.
12 Bit depth
1000fps at 21K resolution
96/192GB large memory for long time record
10TB Non-volatile SSD
10Gb Ethernet for fast download
Capture critical deformation details with 21MP ultra-high resolution to ensure rigorous safety compliance. The G2110M/C_Pro allows engineers to visualize structural failures and airbag deployment patterns in a large field of view (FOV), providing the high-fidelity data necessary for C-NCAP and Euro NCAP analysis without losing clarity in wide-angle shots.
Optimized for Particle Image Velocimetry (PIV), the 4.5 μm pixel size and 12-bit ADC depth provide the exceptional dynamic range and spatial resolution required for complex fluid dynamics. This camera captures micro-level particle movements with minimal noise, ensuring high-precision velocity vector calculations in wind tunnel testing and hydrodynamic research.
The high-resolution APS-C global shutter sensor is ideal for DIC (Digital Image Correlation) and 3D strain field measurement. By delivering 21-megapixel clarity, the camera enables the detection of sub-pixel surface deformations in large-scale structural health monitoring and material fatigue testing, bridging the gap between high-speed motion and static precision.
Designed for high-end cinematography and visual effects, the Revealer 21MP camera offers 1000fps at 21K resolution, providing breathtaking slow-motion detail for commercial filming and scientific documentaries. Its proprietary light-guiding optics ensure vibrant color reproduction and sharpness, meeting the demanding standards of modern high-definition broadcasting and digital cinema.
When choosing a premium 21 megapixel camera for laboratory research, evaluating frame synchronization and data offloading speed is vital. Here is how the Revealer G2110M/C_Pro compares against conventional high-resolution imaging systems:
| Core Parameters | Revealer G2110M/C_Pro | Conventional 21MP Systems | Research Metrology Advantage |
| Frame Rate @ Full 21MP | 1000 fps (5120 × 4096) | 30 - 60 fps (Standard Video) | Captures microsecond material fracture sequences with zero frame drops. |
| Shutter Mechanism | True Global Shutter | Rolling Shutter (Electronic) | Eliminates rolling-shutter spatial distortion during hyper-velocity motion. |
| Max Split-Frame Rate | Up to 49,100 fps | Not Supported / Fixed Rate | Allows flexible sensor windowing to act as an extreme framing camera if needed. |
| Onboard Storage & I/O | 10TB SSD + 10Gb Ethernet | Standard USB 3.0 / SD Card | Eliminates lab downtime by offloading massive 21-megapixel files 10x faster. |
Since a high-resolution 21 megapixel camera utilizes a refined 4.5 μm pixel matrix to achieve dense spatial plotting, managing light sensitivity at 1,000 frames per second is crucial. At a 1 μs minimum exposure time, traditional halogen lamps create heavy flicker and extreme destructive heat in laboratory environments.
To capture low-noise, high-contrast tracking vectors, we recommend deploying synchronized high-intensity LED panels or specialized laser illumination tailored for PIV metrology.
Engineering Budget Optimization: If your laboratory setup features strict illumination constraints or requires much larger 14.6 μm pixels to minimize lighting budgets under extreme shutter speeds, consider our high speed camera 10000 fps flagship series for optimized low-light sensitivity.
| SKU | G520M/C_Pro | G536M/C_Pro | G820M/C_Pro | G2110M/C_Pro |
| Sensor | CMOS | CMOS | CMOS | CMOS |
| Resolution | 2560×2016 | 2560×2016 | 4096×2048 | 5120×4096 |
| Frame | 2000 fps | 3600 fps | 2000 fps | 1000 fps |
| Max. frame | 31700 fps | 60000 fps | 49100 fps | 49100 fps |
| Min. exposure time | 1 μs | 1 μs | 1 μs | 1 μs |
| Pixel Size | 9 μm x 9 μm | 9 μm x 9 μm | 4.5 μm x 4.5 μm | 4.5 μm x 4.5 μm |
| PIV | 1.4 μs | 1.4 μs | 1.4 μs | 1.4 μs |
| ADC | 8/10(M Only)/12 bit(M Only) | 8/10(M Only)/12 bit(M Only) | 8/10/12 bit | 8/10/12 bit |
| AE | Available | Available | Available | Available |
| Internal RAM | 96/192 GB | 96/192 GB | 96/192 GB | 96/192 GB |
| Lens | EF standard, F optional, Coptional | EF standard, F optional, C optional | EF standard, F optional, Coptional | FE standard, F optional, C optional |
| Size W×H×D mm | ≤110×110×205 mm | ≤110×110×205 mm | ≤110×110×205 mm | ≤110×110×205 mm |
| Weightg | ≤3800 | ≤3800 | ≤3800 | ≤3800 |
| Mounting hole | Top Bottom Left and right sides with 1/4 threaded mounting holes | Top Bottom Left and right sides with 1/4 threaded mounting holes | Top Bottom Left and right sides with 1/4 threaded mounting holes | Top Bottom Left and right sides with 1/4 threaded mounting holes |
| Cooling | Fans | Fans | Fans | Fans |
| Operating temperature | -10~50 °C | -10~50 °C | -10~50 °C | -10~50 °C |
| Operating temperature optional | -35 ~ 60 ℃ | -35 ~ 60 ℃ | -35 ~ 60 ℃ | -35 ~ 60 ℃ |
| Power Consumption | 80 W | 80 W | 80 W | 80 W |
| Operating humidity | 0~95 % | 0~95 % | 0~95 % | 0~95 % |
| Protection level | IP64 | IP64 | IP64 | IP64 |
| Shock | 30Grms @11mSec | 30Grms @11mSec | 30Grms @11mSec | 30Grms @11mSec |
| Vibration | 3 axes 60 pulses | 3 axes 60 pulses | 3 axes 60 pulses | 3 axes 60 pulses |
Specifications will be updated. For details, please contact with us.
A 21-megapixel resolution provides ultra-high-definition detail, which is essential for large Field of View (FOV) measurements. It allows engineers to capture fine structural deformations in automotive crash tests or track minute particles in PIV metrology without losing spatial precision, even when zooming into specific areas of the frame.
Yes, the Revealer G2110M/C_Pro is specifically engineered to maintain a frame rate of 1000fps at its full resolution of 5120 × 4096. This combination of high speed and high resolution makes it one of the most powerful tools for scientific research and high-end industrial inspection.
Absolutely. The camera is equipped with up to 192GB of onboard RAM and supports a 10TB non-volatile SSD. This ensures high-speed data buffering and provides ample storage for extended recording sessions in laboratory or field environments.
Yes, it features an IP64 protection level and is built to withstand shocks (30Grms) and vibrations. With an optional operating temperature range of -35°C to 60°C, it is highly reliable for outdoor automotive testing and extreme industrial conditions.
