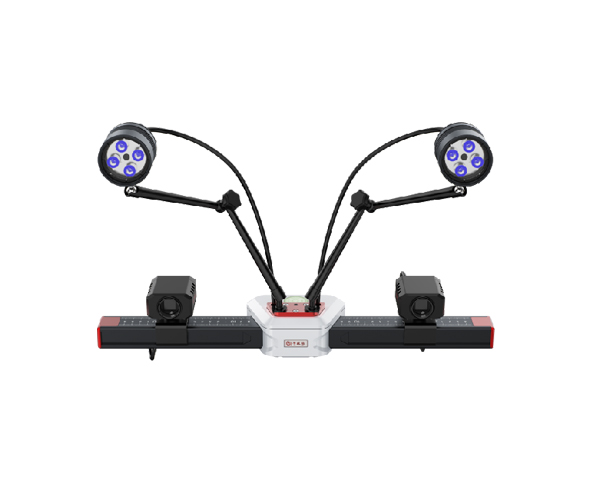

The Revealer Digital Image Correlation(DIC) Quasi-Static Strain Measurement System integrates two high-resolution cameras, a synchronization trigger, RDIC measurement software, calibration plates, and a graphics workstation. It enables the measurement of 3D coordinates, displacement, and strain data under both static and dynamic loading conditions.
12-megapixel non-contact measurement
Sub-pixel displacement recognition algorithm
Full-field displacement and strain distribution measurement
Intelligent voice interaction sampling
Easy to use software
| SKU | RDIC-STD-DH500 | RDIC-STD-DH1200 | RDIC-STD-BM1200 |
| No. of cameras | 2 | 2 | 2 |
| Resolution | 2448×2048 | 4096x3000 | 4096x3000 |
| Full frame rate | 75fps | 30.5fps | 29fps |
| Measuring Field of View | 10-500mm | 10~1000mm | 10~1000mm |
| Displacement accuracy | ≤0.01pixel | ≤ 0.01pixel | ≤0.01pixel |
| Strain accuracy | ≤100με | ≤ 50με | ≤50με |
| Strain Measurement Range | 0.005%~2000% | 0.005%~2000% | 0.005%~2000% |
