Comprehensive, systematic, and professional high-speed vision solutions for automotive manufacturing.

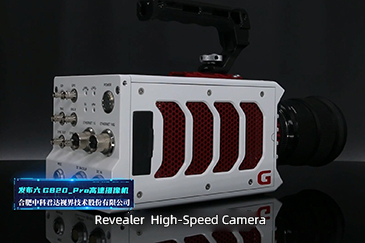

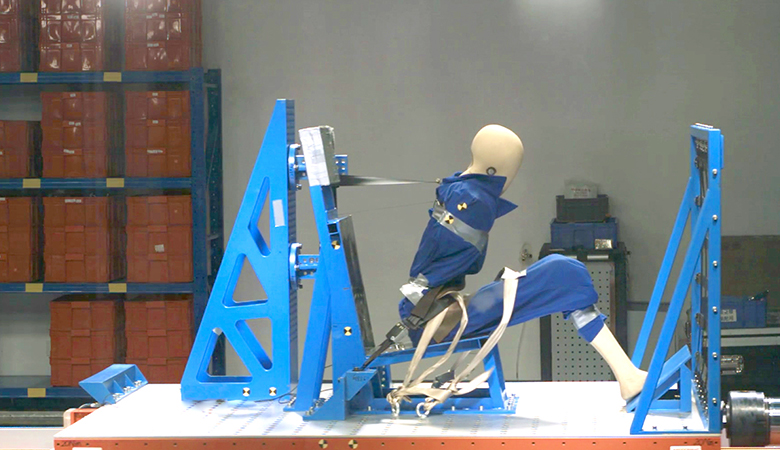

Revealer's high speed camera and Revealer-PMLAB 3D full-field strain and displacement measurement system to obtain automobile high-speed collision instant A/B column deformation and dummy posture analysis.

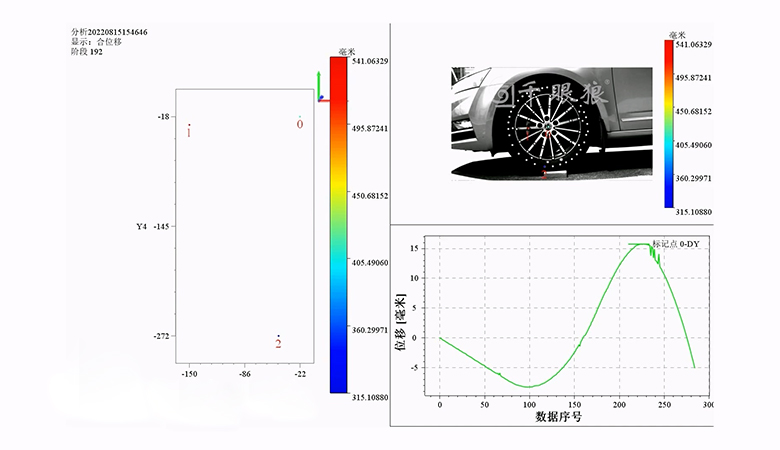

Revealer's high speed camera and Revealer-PMLAB 3D full-field strain and displacement measurement system to study the specific deformation of internal support structure of non-pneumatic tires under different rotational speeds and impact loads.

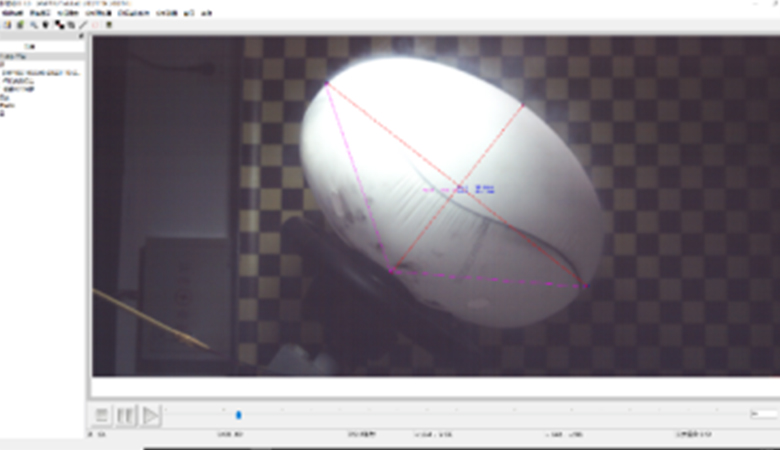

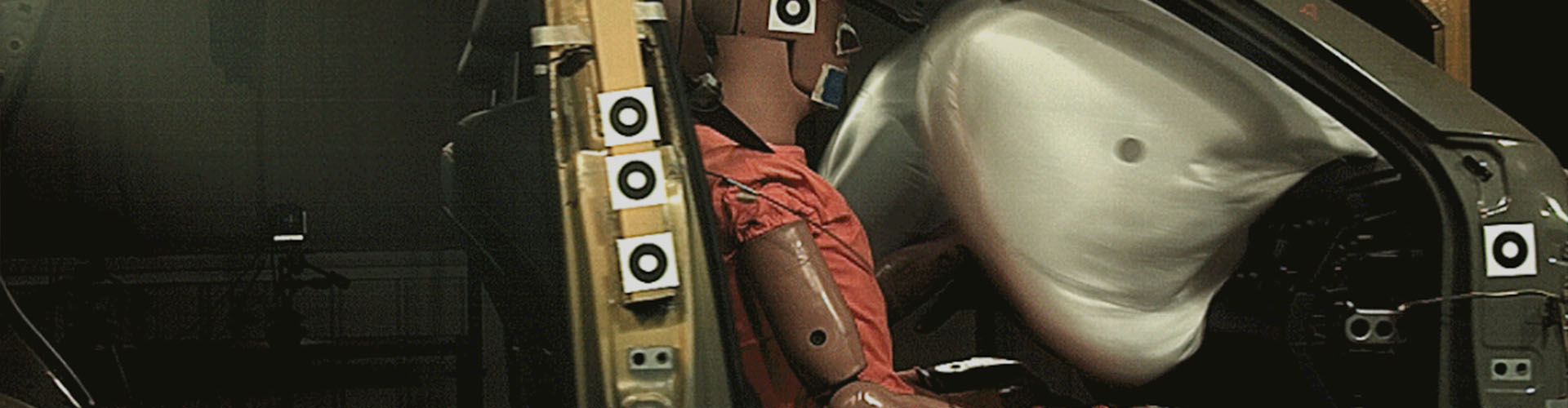

High-speed cameras capture the dynamic deformation, inflation sequence, and interaction postures with dummies/occupants during the airbag deployment process through microsecond-level imaging. This provides crucial visual evidence to optimize the airbag triggering logic, evaluate protective performance, and avoid secondary injuries.

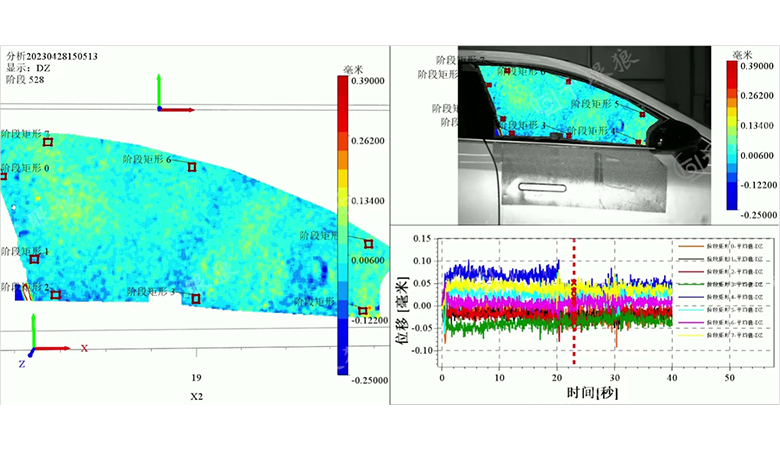

The high-speed DIC measurement system captures the full-field dynamic deformation and displacement of the vehicle body and doors under aerodynamic loads in the wind tunnel in real time. It accurately locates the failure areas of the sealing strips and the evolution of micrometer-level gaps. This provides crucial deformation data to optimize door airtightness and aerodynamic noise control.
