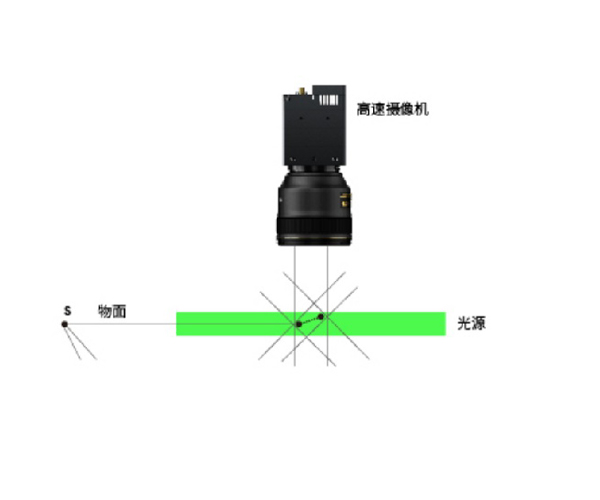

The Revealer 2D2C Particle Image Velocimetry(PIV) System integrates a single high speed camera, a laser, a synchronization controller, and RFlow measurement software. It enables calculation of 2D two-component velocity field information in the measurement plane.
1 high speed cameras for measurement
Pixel Calibration Technology
Background Segmentation Based on Deep Learning
GPU Multi-core Acceleration
Two-dimensional Velocity Field Analysis
| SKU | High-frequency Version | Low-frequency Version |
| Resolution | 2560×1920/1280×1024 | 5120×4096 |
| Frame | 2000fps/15000fps | 36fps |
| Data interface | Gb Ethernet/10Gb Ethernet | CXP |
| Laser Wavelength | 527nm/527nm | 532nm/532nm |
| Laser Type | High-frequency Pulsed Laser | Low-frequency Pulsed Laser |
| Laser Energy | 20~50mJ | 100~500mJ |
| Software License | Rflow 2D2C | Rflow 2D2C |
| Statistics | Instantaneous Velocity, Average Velocity, Turbulence Intensity, Reynolds Stress, Vorticity | Average Velocity, Turbulence Intensity, Reynolds Stress, Vorticity |
Specifications will be updated. For details, please contact with us.
