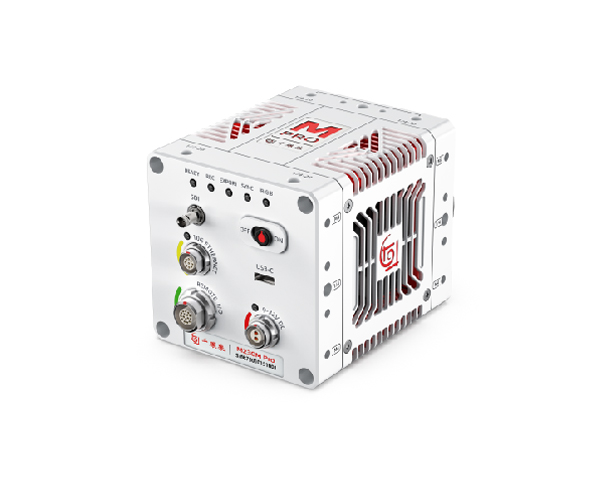

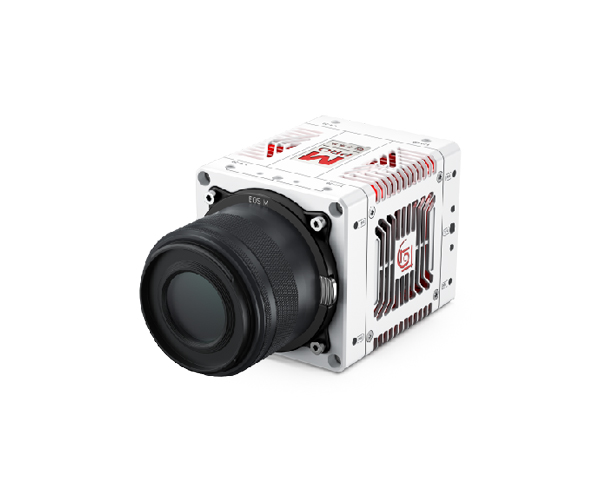

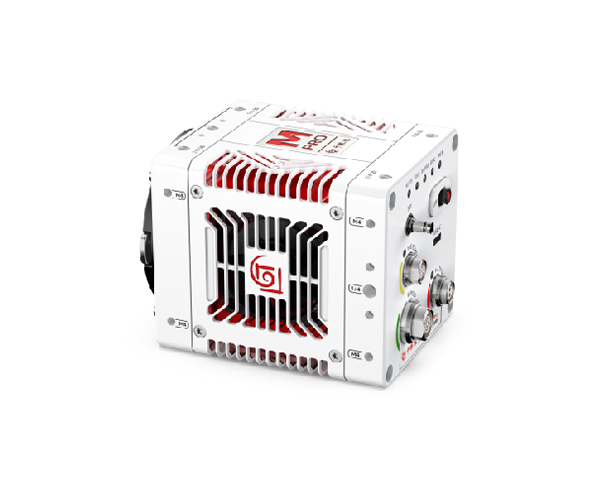

The Revealer 3,000fps High Speed Camera With Large Memory M230M/C is engineered as a 3000 fps camera for scientific experiments in diverse disciplines, industrial R&D projects, and fault localization in industrial production line equipment. Featuring a direct-transfer array storage architecture and optimized circuitry, mechanical structure, interfaces, aesthetics, and protection mechanisms, it offers a massive 2TB built-in storage capacity.
Compact body
3000 fps 1080P capture frame rate
Offline use support
2TB Non-volatile SSD
10Gb Ethernet for fast download
In high-speed capture, data volume is often the biggest bottleneck. While most 3,000fps cameras require a constant connection to a workstation, the Revealer M230M/C is engineered to break these limits.
1. Industrial-Grade 2TB NVMe SSD: Beyond Standard Memory
Most high-speed cameras rely on volatile RAM, which limits recording time to seconds and risks data loss if power is interrupted. The M230M/C features a built-in 2TB Non-volatile SSD.
Massive Storage Capacity: Capture thousands of high-resolution frames without worrying about buffer overflows.
Direct-Transfer Architecture: Our optimized circuitry allows for high-speed data streaming directly to the internal storage, ensuring zero frame drops during critical scientific experiments.
2. True Offline Autonomy: No PC? No Problem.
The M230M/C is designed for "Field-Ready" and "Offline" use, making it the ideal tool for environments where bringing a high-end workstation is impractical or impossible.
Standalone Recording: Perform full-speed 3,000fps capture in remote testing sites, industrial production lines, or outdoor ballistic ranges without being tethered to a computer.
Enhanced Portability: Reduced cable clutter (no need for high-speed data cables during capture) simplifies setup in tight spaces or on mobile platforms.
Data Security: Once the event is captured, the data is safely stored on the internal non-volatile SSD, ready for high-speed 10GbE offloading at your convenience.
3. Reliable Fault Localization in Harsh Environments
For industrial R&D and fault detection, the ability to work offline means the M230M/C can be integrated into equipment cabinets or robotic arms where real-time PC monitoring is restricted. Combined with its IP64 protection and rugged mechanical structure, it offers a level of flexibility that standard lab cameras simply cannot match.
| SKU | M230M/C Pro | M220M/C Pro |
| Sensor | CMOS | CMOS |
| Resolution | 1920×1080 | 1920×1080 |
| Frame | 3200fps | 2200fps |
| Shutter | Global shutter | Global shutter |
| Min. exposure time | 100ns | 100ns |
| Pixel Size | 10 μm x 10 μm | 10 μm x 10 μm |
| PIV | 150ns | 150ns |
| ADC | 10bit | 10bit |
| AE | Available | Available |
| EDR | Available | Available |
| Record button | Available | Available |
| Data interface | 10 Gb/ Gb Ethernet | 10 Gb/ Gb Ethernet |
| Video interface | 3G-SDI/HDMI | 3G-SDI/HDMI |
| Sync Input Interface | 3.3/5V TTL | 3.3/5V TTL |
| Sync Output Interface | 5V TTL | 5V TTL |
| Timing | DC IRIG_B in/GPI | DC IRIG_B in/GPI |
| Control interface | Reserve RS422 | Reserve RS422 |
| SSD | 64GB/256GB/512GB/1TB/2TB | 64GB/256GB/512GB/1TB/2TB |
| Lens | EF standard, F optional, C optional | EF standard, F optional, C optional |
| Size W×H×D | 75×75×90mm | 75×75×90mm |
| Weight | 800g | 800g |
| Mounting hole | Top Bottom with 1/4 threaded mounting holes | Top Bottom with 1/4 threaded mounting holes |
| Cooling | Fans | Fans |
| Operating temperature | -20~50°C，-40~70°C optional | -20~50°C，-40~70°C optional |
| Operating humidity | 0~95% | 0~95% |
| Power Consumption | 30W | 30W |
| Protection level | IP64 | IP64 |
| Shock | 30G Max 200G backward peak wave @7mSec 3 axe | 30G Max 200G backward peak wave @7mSec 3 axe |
| Vibration | 7.5Grms 15min/3 axes | 7.5Grms 15min/3 axes |
| EMC | Available | Available |
Specifications will be updated. For details, please contact with us.
The Revealer M230M/C high-speed camera features a built-in 2TB Non-volatile SSD. This massive internal storage allows for long-duration, high-speed recording and supports standalone (offline) operation without the need for a continuous PC connection.
Yes. With a minimum exposure time of 100ns and a 150ns PIV interval, the M230M/C is specifically optimized for high-precision Particle Image Velocimetry (PIV) and Digital Image Correlation (DIC) measurements in scientific research.
The camera is equipped with a 10Gb Ethernet interface, ensuring rapid data offloading from the internal 2TB SSD to your workstation, significantly reducing downtime between high-speed capture sessions.
Absolutely. It is designed with an IP64 protection level, a rugged mechanical structure, and can withstand shocks up to 30G. This makes it ideal for fault localization on industrial production lines and harsh R&D testing sites.
The M230M/C captures high-definition images at a 3000 fps frame rate at 1920×1080 (1080P) resolution, providing clear and detailed slow-motion footage for complex motion analysis.
