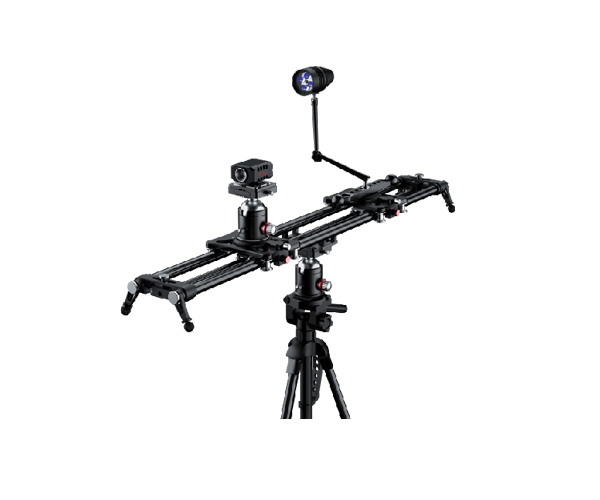

The Revealer Video Extensometer is a high-precision, non-contact, real-time analysis tool for strain and displacement measurement. Compared with traditional contact extensometers, video extensometers are less prone to damage and reusable, avoiding the influence of contact sensors on the mechanical properties of the specimen, and suitable for use in complex environments.
500fps at 8M resolution non-contact measurement
Support real-time calculation of longitudinal and transverse strain
Support signal interoperability with testing machines
ISO 9513 Accuracy Class 0.5
Easy to use software
| SKU | RVM-STD5 | RVM-STD12 | RVM-HighSpeed |
| Resolution | 5M | 12M | 1.3-21M |
| Measurement range | 0.002%~1000% | 0.001%~2000% | 0.002%~2000% |
| Measuring Field | Micro~1000mm | Micro-1000mm | Micro-1000mm |
| Frame | 0~750fps | 0~30fps | 1000~25000fps |
| Poisson's ratio | ● | ● | ● |
| Tester communication | ● | ● | ● |
| Accuracy Class | ISO 9513 Class 0.5 | ISO 9513 Class 0.5 | ISO 9513 Class 0.5 |
Specifications will be updated. For details, please contact with us.
